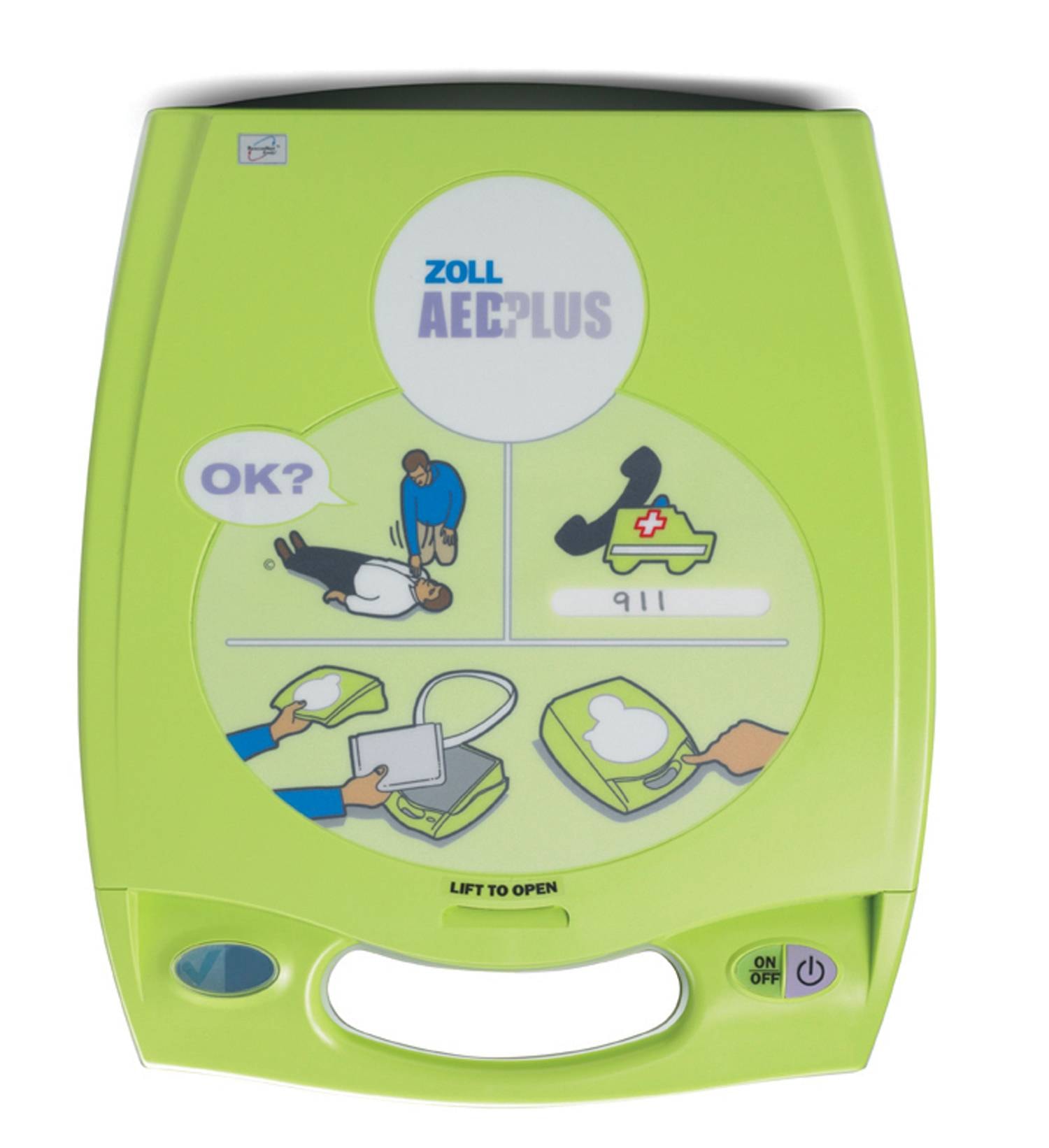

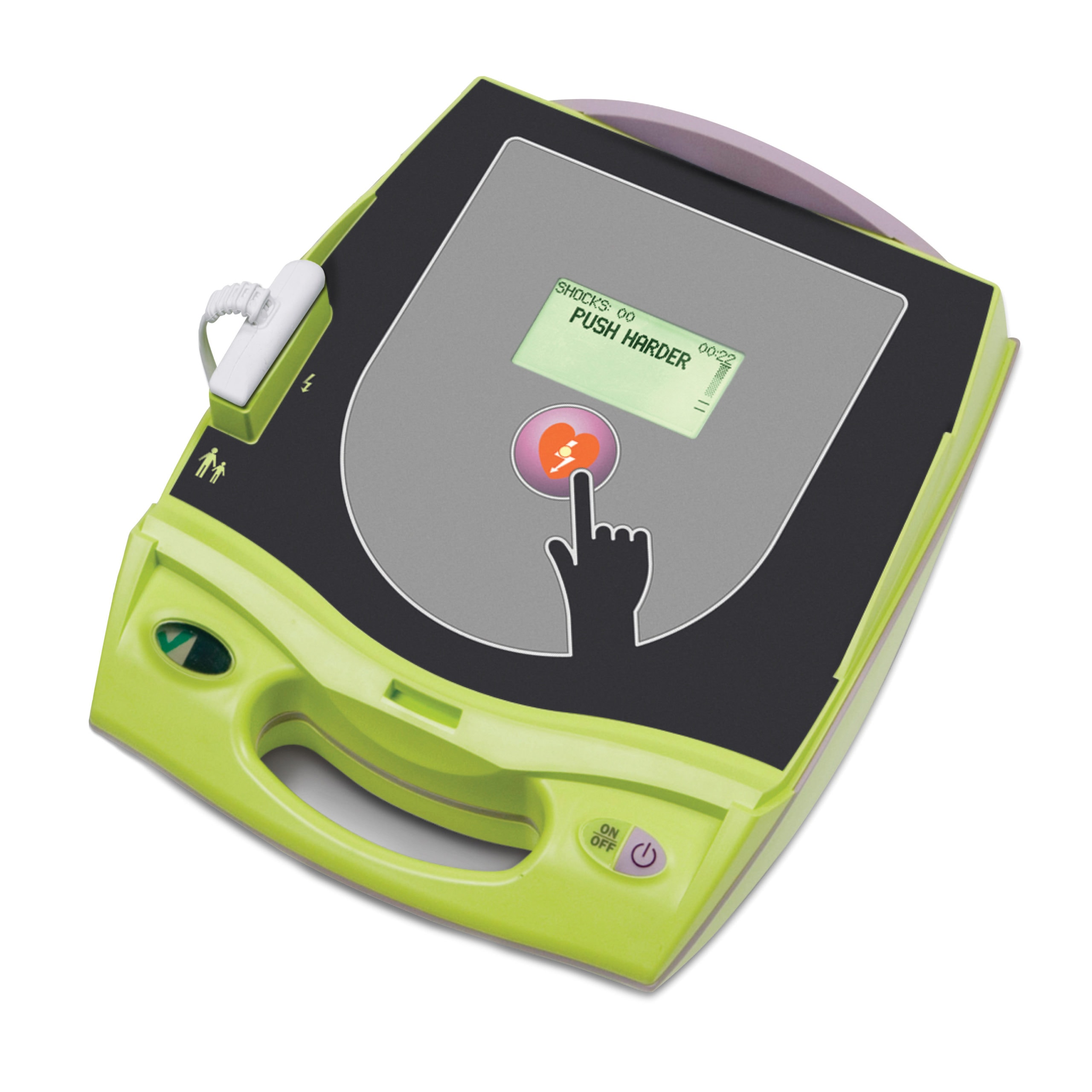

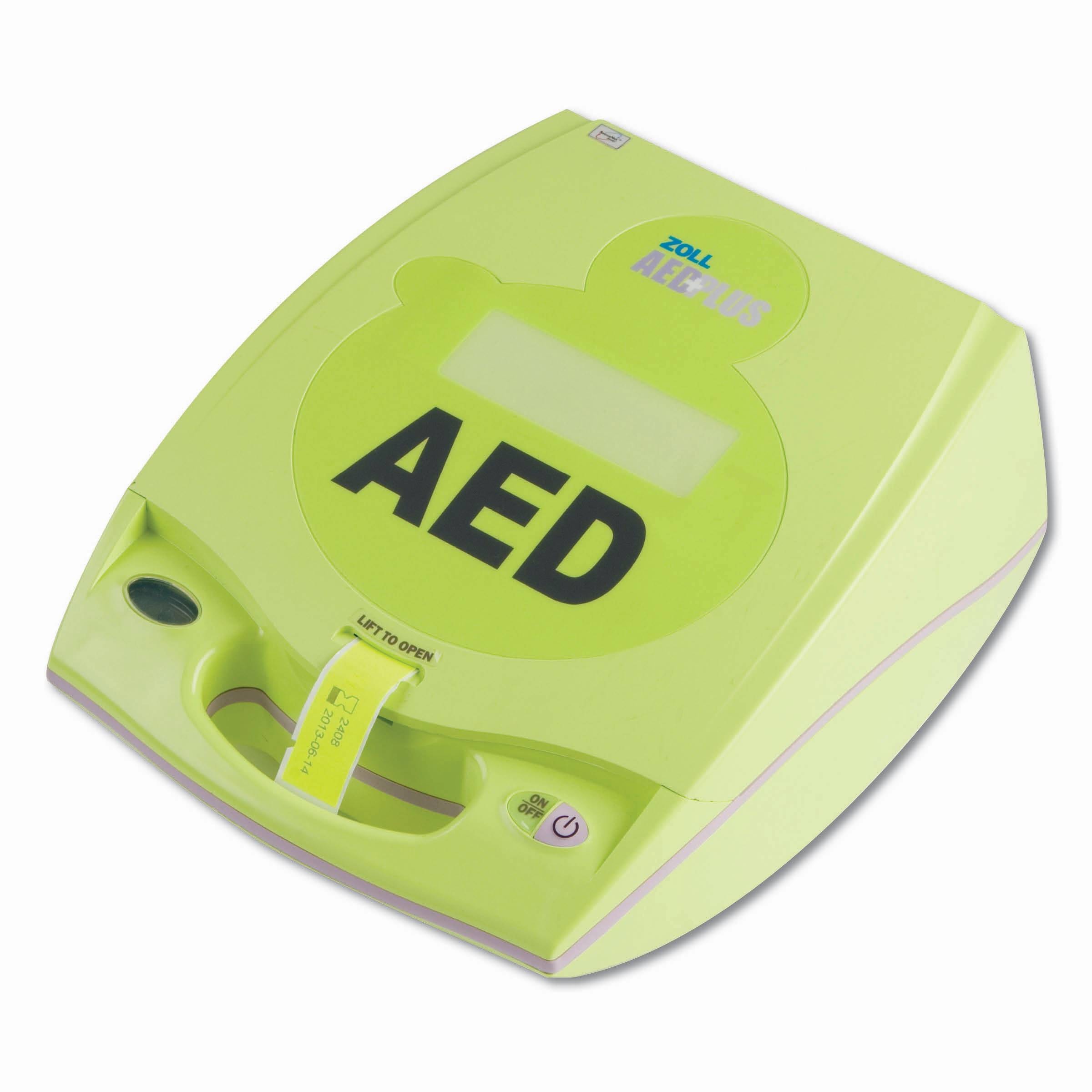

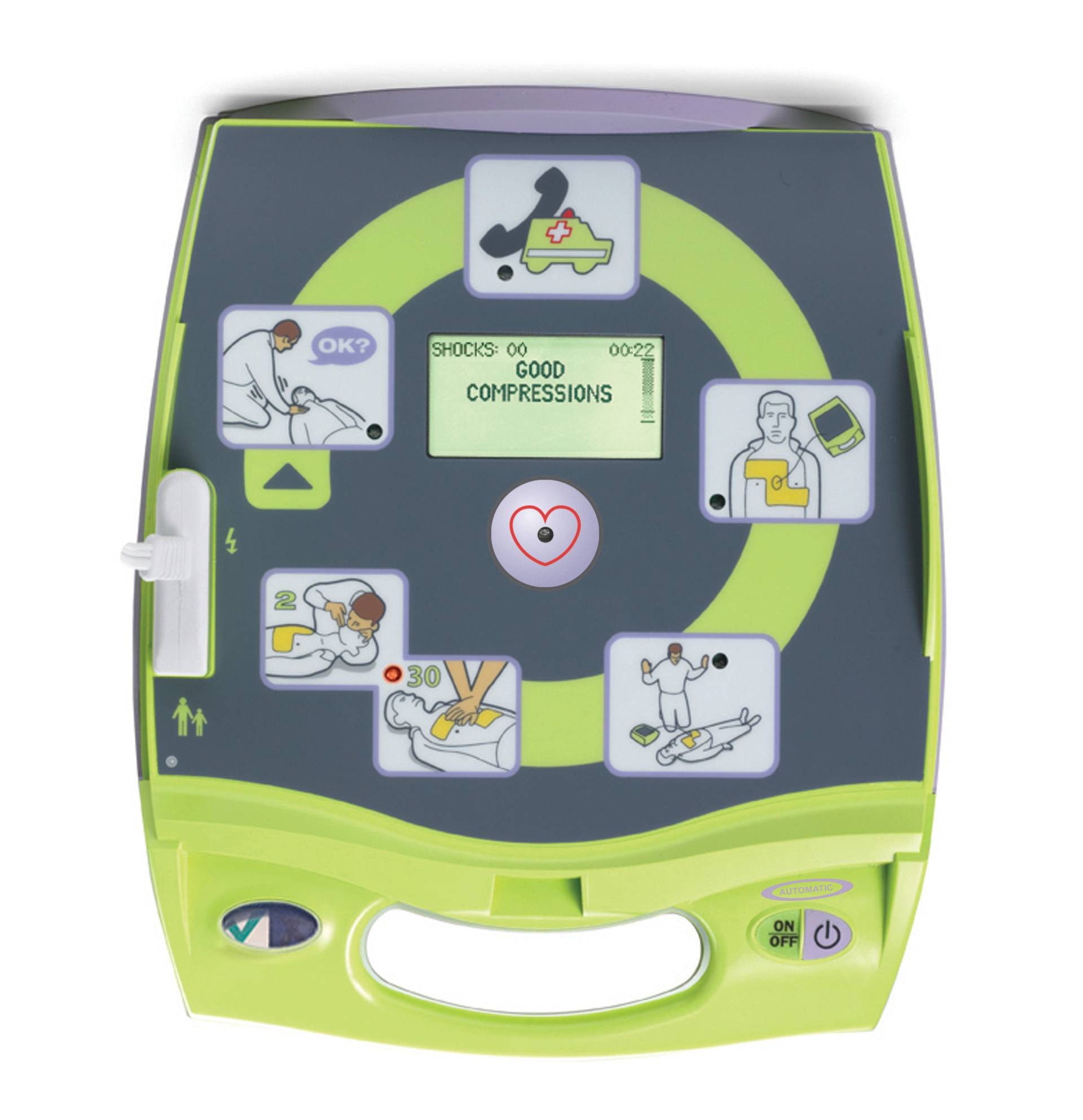

ZOLL AED Plus Fully-Automatic
€1,493.80 €1,493.80 Ex VAT
The latest guidelines from resuscitation councils worldwide are clear: Successful defibrillation must be supported with high-quality CPR. The AED’s first heart analysis is critical. If it calls for no shock, only CPR can lead to a shockable rhythm on the next analysis. CPR provides a struggling heart with oxygenated blood needed to help restore a normal rhythm.
The ZOLL AED Plus® defibrillator will guide you through the process of performing high-quality CPR and will, if needed, deliver a potentially lifesaving shock to the heart. With a ZOLL AED Plus and quick action, you could help avert tragedy.
Manufacturer: ZOLL
Rescue with confidence

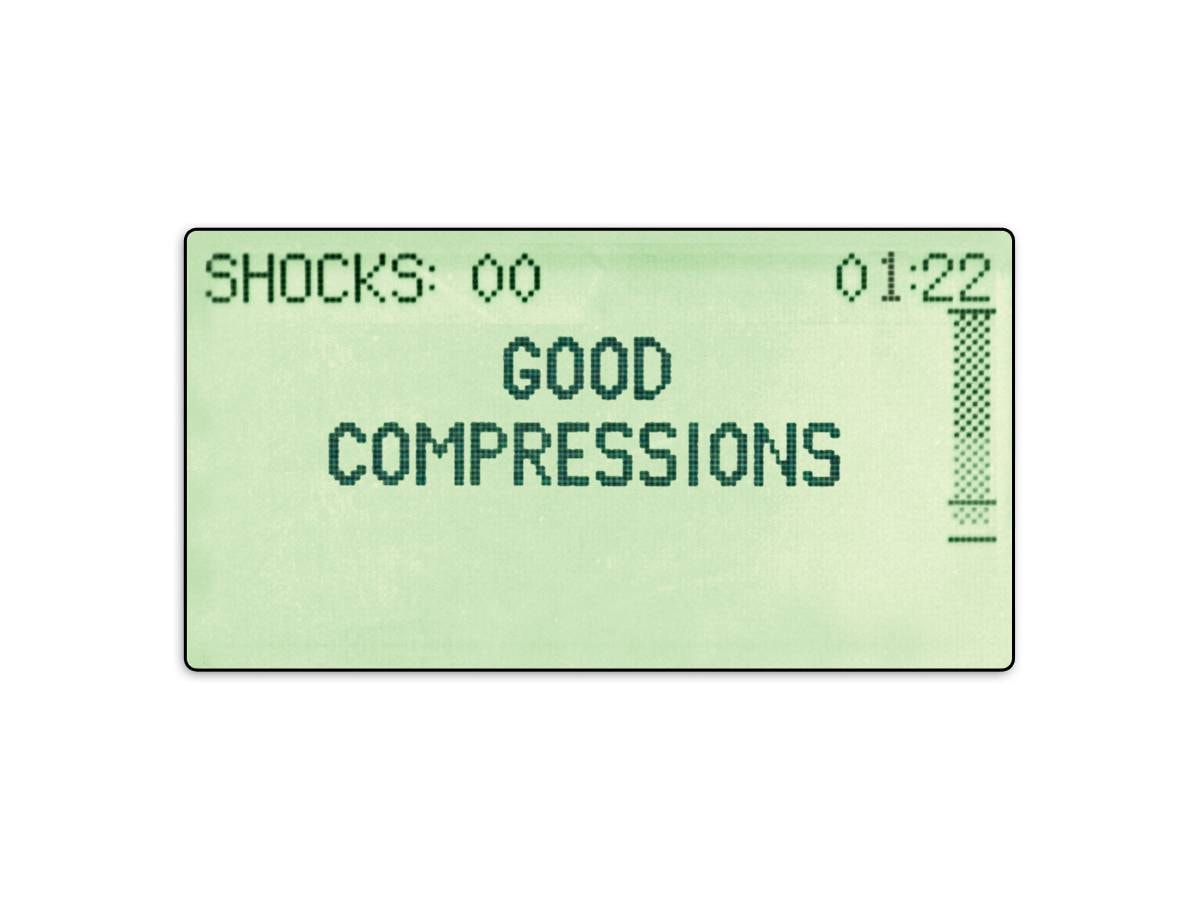

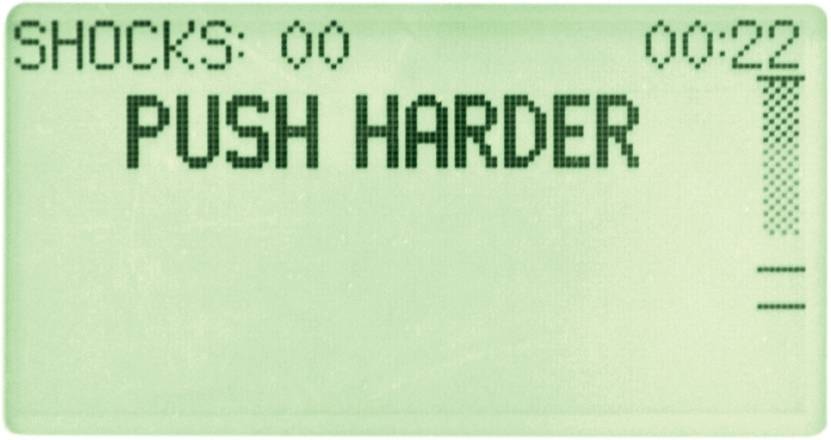

In addition to step-by-step audio prompts, our proven Real CPR Help technology includes a compression depth indicator that provides real-time visual guidance to help you deliver the best possible CPR.
Simple, accurate pad placement
Speed is of the essence when treating a cardiac arrest victim. ZOLL’s CPR-D-padz® electrodes feature a unique one-piece design to ensure easy and accurate placement. Electrodes come with a rescue accessory kit that includes scissors, gloves, a mask, and other items.
Ready for the rescue
Industry-leading batteries and pads that last five years mean fewer replacements, less maintenance, and an AED that’s ready when needed.
Smart investment
Once installed, the AED Plus has the lowest total cost of ownership compared to other AEDs. It’s an invaluable investment that can help save a life.
Designed for durability
Designed to withstand harsh environments and temperature extremes, the AED Plus has an ingress protection (IP) rating of IP55, which means it is highly resistant to dust and moisture.
Waveform: Rectilinear Biphasic
Defibrillator Charge Hold Time: 30 seconds
Energy Selection: Automatic preprogrammed selection (120J, 150J, 200J)
Patient Safety: All patient connections are electrically isolated
Charge Time: Less than 10 seconds with new batteries
Electrodes: ZOLL CPR-D-padz, pedi-padz® II or stat-padz® II
Self-test: Configurable automatic self-test from 1 to 7 days. Default = every 7 days. Monthly full-energy test (200J).
Automatic Self-Test Checks: Battery capacity, electrode connection, electrocardiogram and charge/discharge circuits, microprocessor hardware and software, CPR circuitry and CPR-D sensor, and audio circuitry CPR: Metronome Rate: Variable 60 to 100 CPM Depth: 3/4″ to 3.5″; 1.9 to 8.9 cm
Defibrillation Advisory: Evaluates electrode connection and patient ECG to determine if defibrillation is required
Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults, 200 BPM for pediatrics. For ECG Analysis Algorithm sensitivity and specificity, refer to AED Plus Administrator’s Guide.
Patient Impedance Measurement Range: 0 to 300 ohms Defibrillator: Protected ECG circuitry
Display Format: Optional LCD with moving bar Size: 2.6″ x 1.3″; 6.6 cm x 3.3 cm Optional ECG Viewing Window: 2.6 seconds Optional ECG Display Sweep Speed: 25 mm/sec; 1″/sec
Battery Capacity: Typical new (20°C) = 5 years (225 shocks) or 13 hours continuous monitoring. End of life designated by Red X (typical remaining shocks = 9). Data Recording and Storage: 50 minutes of ECG and CPR data. If audio recording option is installed and enabled, 20 minutes of audio recording, ECG, and CPR data. If audio recording is disabled, 7 hours of ECG and CPR data.
PC Minimum Requirements For Configuration and Patient Data Recovery: Windows® 98, Windows® 2000, Windows® NT, Windows® XP, Windows® 7, IBMcompatible PII with 16550 UART (or higher) computer. 64MB RAM. VGA monitor or better. CD-ROM drive. IrDA port. 2MB disk space.
Size: (H x W x D) 5.25″x 9.50″ x 11.50″; 13.3 cm x 24.1 cm x 29.2 cm
Weight: 6.7 lbs; 3.1 kg
Power: User-Replaceable Batteries. 10 Type 123A Photo Flash lithium manganese dioxide batteries
Device Classification: Class II and internally powered per EN60601-1
Design Standards: Meets applicable requirements of UL 2601, AAMI DF-39, IEC 601-2-4, EN60601-1, IEC60601-1-2
Operating Temperature: 32° to 122°F; 0° to 50°C
Storage Temperature: -22° to 140°F; -30° to 60°C
Humidity: 10 to 95% relative humidity, non-condensing
Vibration: MIL Std. 810F, Min. Helicopter Test Shock: IEC 68-2-27; 100G Altitude: -300 to 15,000 ft.; -91m to 4573 m
Particle and Water Ingress: IP-55
Shelf Life: 5 years
Conductive Gel: Polymer Hydrogel
Conductive Element: Tin
Packaging: Multilayer foil laminate pouch
Impedance Class: Low
Cable Length: 48 in (1.2 m)
Sternum: Length: 6.1 in (15.5 cm); Width: 5.0 in (12.7 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Apex: Length: 6.1 in (15.5 cm); Width: 5.6 in (14.1 cm); Length, conductive gel: 3.5 in (8.9 cm); Width, conductive gel: 3.5 in (8.9 cm); Area, conductive gel: 12.3 sq in (79.0 sq cm)
Complete Assembly: Folded Length: 7.6 in (19.4 cm); Folded width: 7.0 in (17.8 cm); Folded height: 1.5 in (3.8 cm)
Design Standards: Meets applicable requirements of ANSI/AAMI/ISO DF-39-1993
